Product Description

Product Attributes Supply Ability & Additional Information Packaging & Delivery Other information Product Description

Product Attributes

Model No.: TBAC-DDG-70

Brand: Ya Lian

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Return And Replacement

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hotel, Villa, Apartment, Mall, Hall, Supermarket, Other, Office Building, Workshop

Design Style: Modern, Traditional, Minimalist, French, European

Place Of Origin: China

Border Material: Aluminum Alloy

Switch Way: Swing

Characteristic: Folding Screen, Magnetic Screen

Open Mode: Horizontal

Mesh Material: Nylon

Additional Functionality: Dust-Proof, Anti-Theft, Heat Insulation, Insect Control, Invisible, Soundproof, Windproof

Material: Aluminum, Aluminum Alloy

Product Name: Aluminum Casement Window/Aluminum Thermal Break Casement Window

Color: Customized Colors

Size: Customized Size

Glass: Single\double\tempering\coating\low-e

Surface Treatment: Power Coating

Profile Thickness: 1.4mm

Certificates: ISO9001\CE\AS2047

Main Market: American\Australian\New Zealand\Canada

MOQ: 3 square meter

Delivery Time: 25-35 Days

Supply Ability & Additional Information

Packaging: 4-Layers Protection Packaging

Productivity: 500000 square meters/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: Annual export of 500000 square meters of windows and doors

Certificate: ISO9001\CE\AS2047

HS Code: 7610100000

Port: Nansha Port,Shekou Port,Yantian Port

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Square Meter

Package Type:: 4-Layers Protection Packaging

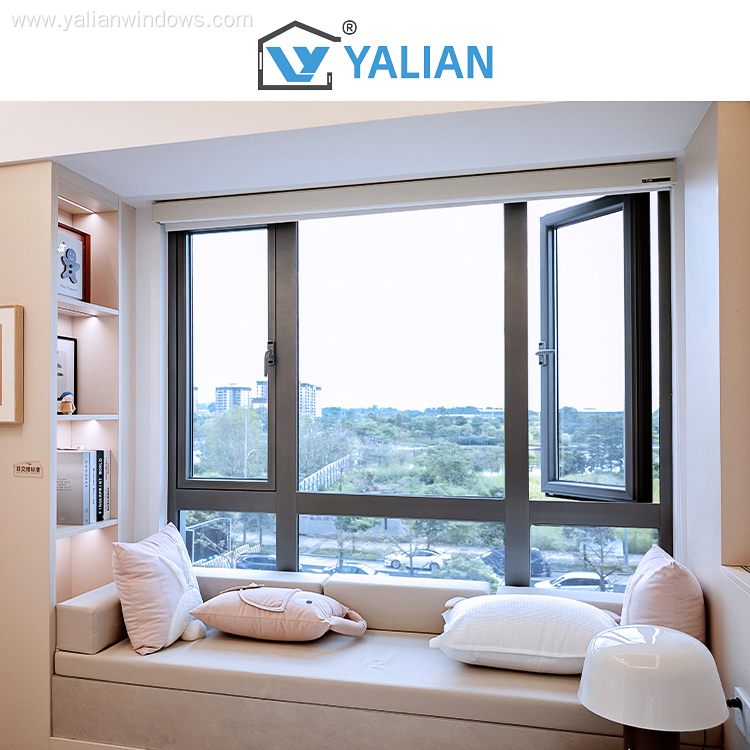

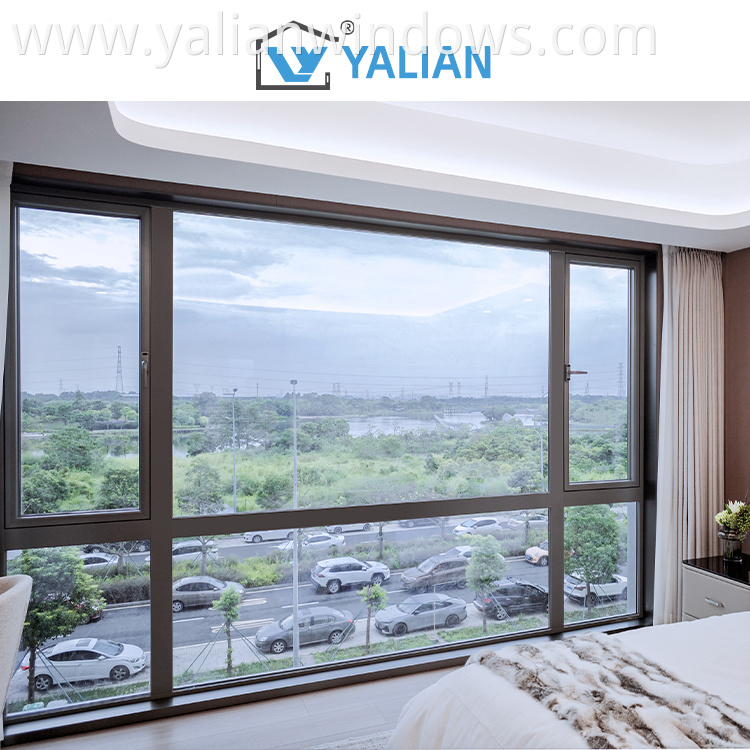

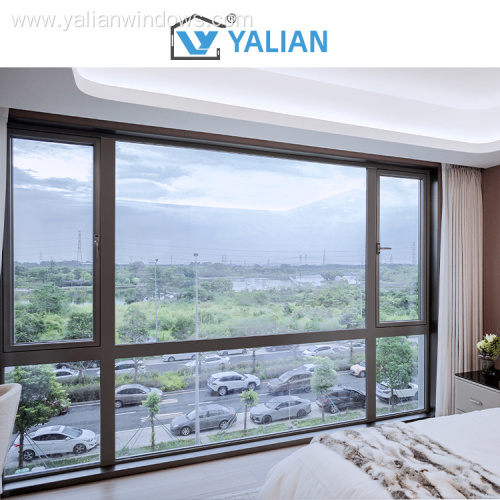

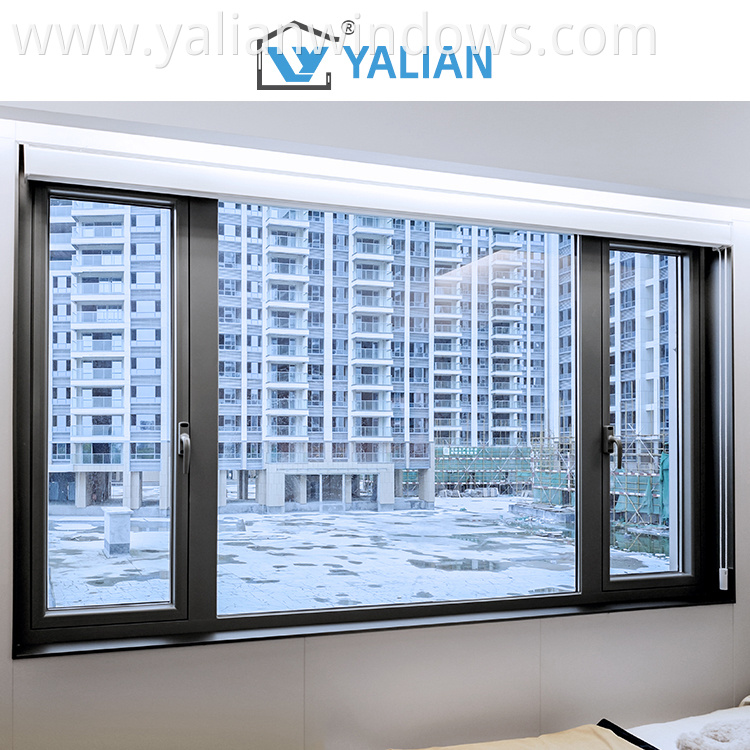

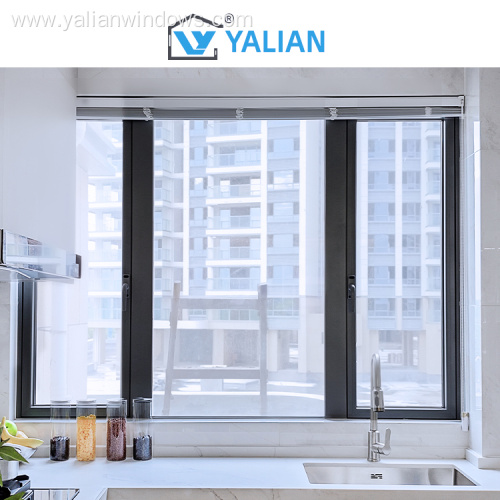

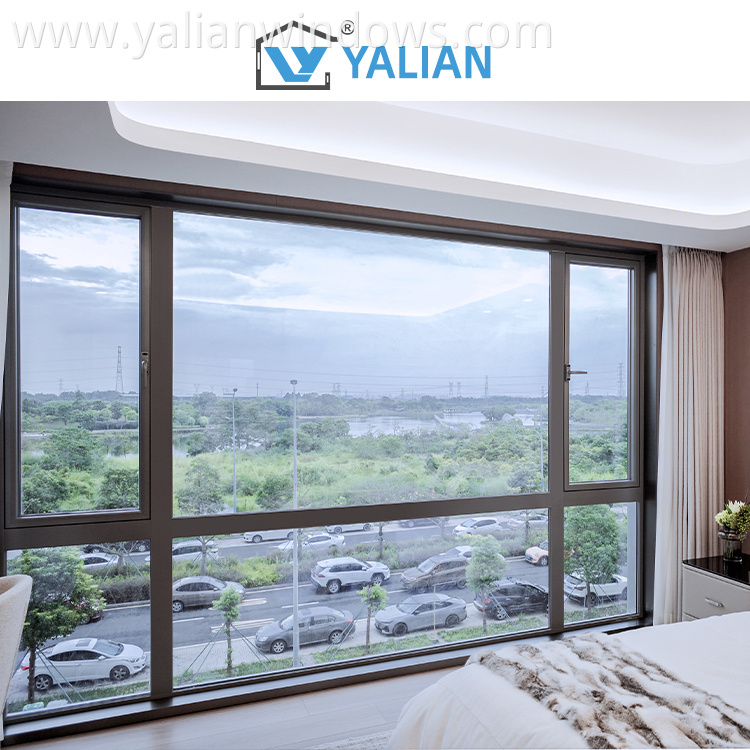

Picture Example:

living room application windows





Product Description

The 70 series thermally insulated double-glazed Aluminum Alloy Casement Window is a high-end window product that combines high thermal insulation, sound insulation and durability. It adopts a 70mm wide thermally insulated aluminum alloy profile and a hollow double-glazed design. It is suitable for places with obvious climate changes and high requirements for energy saving and comfort, and meets the high efficiency and energy saving needs of modern residential and commercial buildings. The thermally insulated aluminum structure greatly improves the thermal insulation effect and is an ideal choice for high-end building spaces

1.Product structure and material

①Series model: 70 series

②Structural type: Casement Window, supports single or double leaf design, suitable for inward or outward opening

③Material: High-quality thermal insulation aluminum alloy, profile wall thickness 1.4mm, surface can be oxidized, sprayed and other processes, excellent anti-corrosion and corrosion resistance

④Thermal Break structure: Insulation strips (such as PA66 nylon insulation strips) are added inside the aluminum alloy profile to effectively isolate the temperature difference between indoor and outdoor and reduce heat conduction

⑤Glass configuration: Hollow double-layer glass, optional tempered or Low-E glass, to improve heat insulation and sound insulation

2.Applicable scenarios

①High-end residences: Suitable for living rooms, bedrooms and other spaces that require sound insulation and heat preservation, especially those facing the street or high-rise buildings

②Commercial buildings: Suitable for office buildings, hotels and other places that require quietness and comfort

③Regions with obvious climate changes: Especially suitable for areas with cold winters and hot summers or large temperature differences. The broken bridge design reduces heat conduction and improves living comfort

3.Installation and Maintenance

①Easy installation: The window structure is well designed, quick to install, and suitable for most building types

②Easy to clean: The aluminum alloy surface is flat and smooth, highly resistant to stains, and simple to clean and maintain

③Strong durability: The broken bridge aluminum alloy and hollow double-glass structure are strong and durable, with a long service life, and can maintain beauty and performance for a long time

The 70 series thermally insulated double-glazed aluminum alloy casement window is a high-end window product with excellent heat insulation, sound insulation and energy saving effects. Its thermally insulated structure effectively reduces heat and cold conduction and is suitable for areas with complex or extreme climates, while providing efficient sound insulation and wind and water resistance. Whether used in residential or commercial buildings, it can bring higher comfort and safety, especially suitable for projects with high energy-saving and environmental protection requirements, and is an ideal choice for modern buildings.
